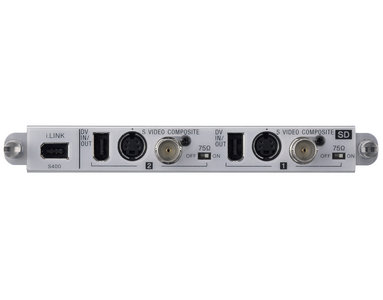

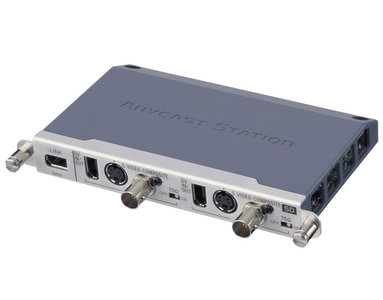

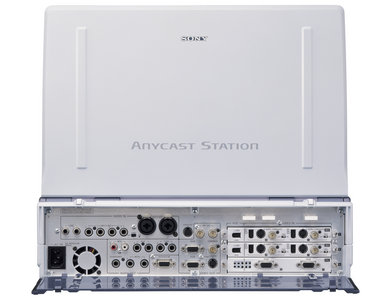

SD Video Interface Module

Overview

Composite
BNC Type x 2
Video: 1.0 Vp-p, 75 O, Sync negative

S-Video
DIN Type x 2
Y: 1.0 Vp-p, 75 O, Sync negative
C: 0.286 Vp-p at burst, 75 O, (NTSC)
C: 0.3 Vp-p at burst, 75 O, (PAL)

i.LINK
IEEE 1394 6-pin Type x 2
IEC 61883-2 equiv.

HDD Port
i.LINK: IEEE 1394 S400 6-pin Type x 1
HDD IF: SBP2
