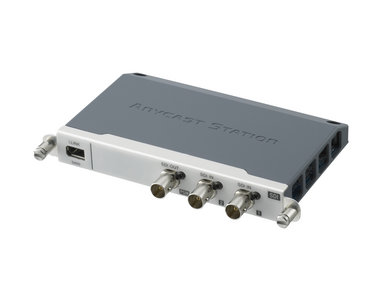

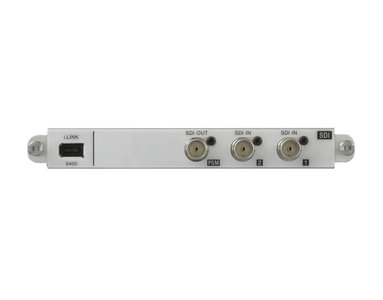

Serial Digital Interface Module

Overview

SDI IN
BNC Type x 2
Video: 800m Vp-p (75 ?)
SMPTE259M-C, ITU-R656 compliant
Audio sampling rate: 20 bit 48 kHz 2 channels (channel 1 and 2, or 3 and 4) /SMPTE272M-A compliant

SDI OUT
BNC Type x 1
Video: 800m Vp-p (75 ?)
SMPTE259M-C, ITU-R656 compliant
Audio sampling rate: 20 bit 48 kHz 2 channels (channel 1 and 2) /SMPTE272M-A compliant

i.LINK
IEEE 1394 S400 6pin Type x 2
HDD IF: SBP2
